600W Grid Tie Micro Inverter 230V Solar Inverter IP67 with wifi control Sale
Vendor: NEP
Currently there are
peoples are currently looking at this product
-
The micro inverter converts the current of the solar module into usable current. Single-phase micro-inverter is usually used in residential and small business environment (single-phase or three-phase connection is supported).
-
[Comprehensive safety protection] The solar-powered micro inverter is equipped with IP67 waterproof to prevent raindrops from penetrating completely, and the aluminum alloy shell can effectively prevent surface rain erosion. The input and output are completely isolated, so it is safer and more reliable. A variety of intelligent security measures can ensure the integrity of the inverter in use.
-
[Professional Certification] It has three professional certifications of CE, VDE and EMC, as well as related certification certificates, which means that it has obtained professional certification and the product quality is better.
-
[Multi-layer protective layer] Stacked connection, high-precision phase detection; Overvoltage and undervoltage protection; And high-frequency and low-frequency protection; Island education protection. It requires little maintenance and occasionally removes dust from photovoltaic modules.
-
[10-year quality guarantee] Free return and replacement! We guarantee 100% shopping satisfaction to every customer. If you have any questions about the purchase, please contact us. We will give you a professional and detailed reply within 24 hours. Click here to buy now!
- Power of attorney of the NEP brand
- Data information
- Certification Converter (PV grid-connected inverter)
-
Type of project: inverter
- Modell: BDM-600/wifi
-
Ac output voltage: 120V/230V (automatic identification)
-
Rated output power: 600 W
- Operating temperature range: -40℃ -+85℃
- Monitoring System: Mobile APP
- Wasserdichtigkeit: IP67
- Cooling Means: Self-cooling
1. How many year for product warranty ?
Commonly 10years, can be extended into 25years, one year should add 1usd.

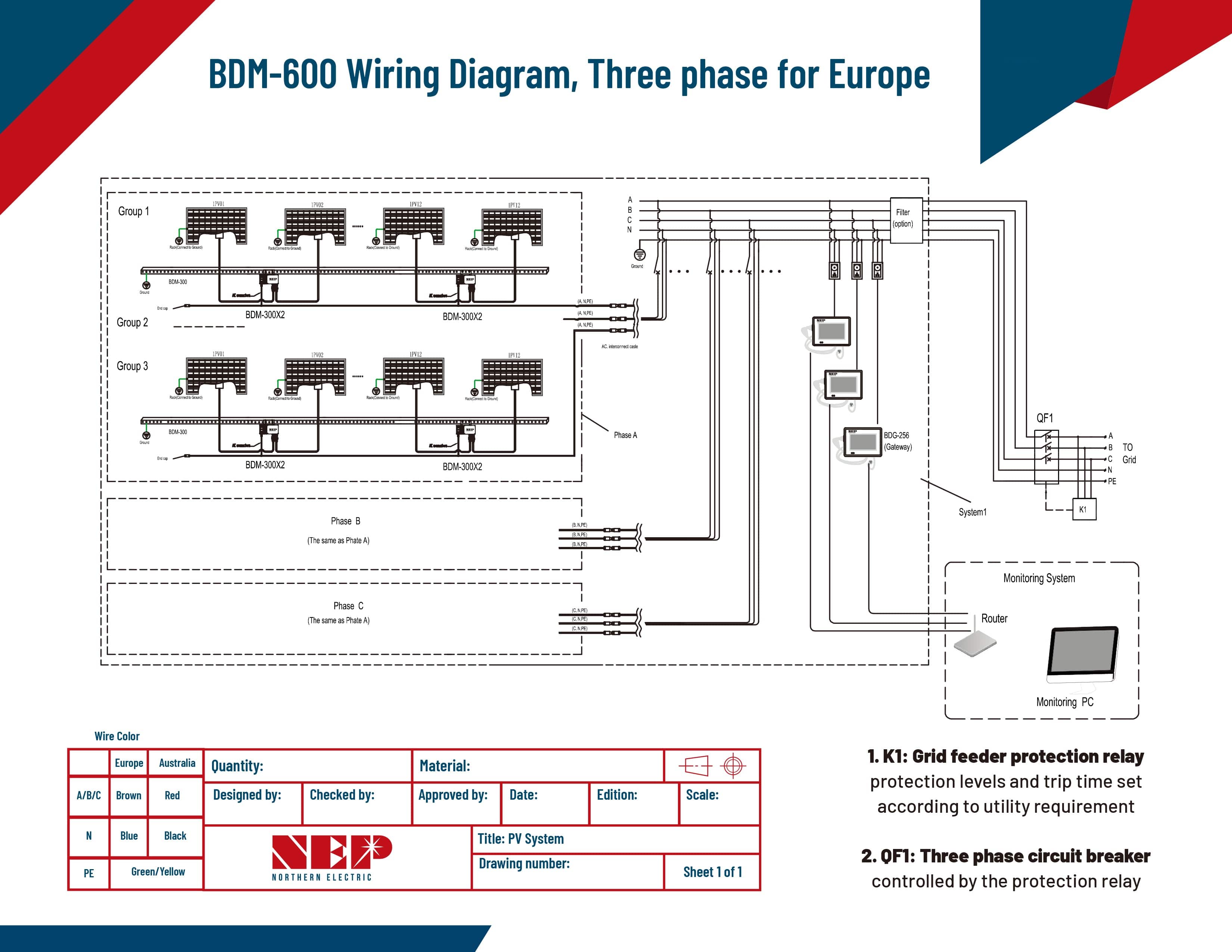

2. Please kindly provide us for the installation manual or example connection diagram together with related devices.
Check the manual
3. It is possible to provide failure rate, since we have ever found some problem with other brand that their failure rate was too high XX%/year/MWp
NEP brand<0.2%
4. Please kindly specify % of humidity which is compatible with your product.
Operating Ambient Temperature ：-40C - +85C
Can work 1meter under water, 100% humidity
5. Could you please specify further about the condition which will make rapid shutdown to operate.
1) If any device senses higher temperature, this device will shutoff automatically.
2) The high temperature device will report back to transmitter, and the transmitter will command every unit of RSD under the inverter to shutoff.
In another word, all RSDs under this inverter will shutdown.
6. According to NEC2017/2020, installer should provide emergency push button switch which fireman can operate conveniently, Does you product already complied ? we didn't see any specification for emergency push button switch.
Yes. automatically or manually，check it in page 19
| model | BDM 600 |
|---|---|
| InputDC | |
| Recommended Max PV Power (Wp) | 450x2 |
| Recommended Max DC Open Circuit Voltage (Vdc) | 60 |
| Max DC Input Current (Adc) | 14x2 |
| MPPT Tracking Accuracy | >99.5% |
| MPPT tracking range (Vdc) | 22-55 |
| Isc PV (absolute maximum) (Adc) | 18x2 |
| Maximum Inverter Backfeed Current to the Array (Adc) |
0 |
| Output AC | |
| Peak AC Output Power (Wp) | 550 |
| Rated AC Output Power (Wp) | 500 |
| Nominal Power Grid Voltage (Vac) | 240 / 208 / 230 |
| Allowable Power Grid Voltage (Vac) | 211V-264* / 183V-229* / configurable* |
| Allowable Power Grid Frequency (Hz) | 59.3 to 60.5* / configurable* |
| THD | <3% (at rated power) |
| Power Factor (cos phi, fixed) | >0.99 (at rated power) |
| Rated Output Current (Aac) | 2 / 2.40 / 2.17 |
| Current (inrush)(Peak and Duration) | 24A, 15us |
| Rated Frequency (Hz) | 60/50 |
| Maximum Output Fault Current (Aac) | 4.4A peak |
| Maximum Output Overcurrent Protection (Aac) | 10 |
| Maximum number of units per branch (20A) (All NEC adjustment factors have been considered) |
7 / 6 / 7 |
| System efficiency | |
| Weighted Average Efficiency (CEC) | 95.50% |
| Night Time Tare Loss (Wp | 0.11 |
| Protection functions | |
| Over/under voltage protection | yes |
| Over/Under Frequency Protection | yes |
| Anti-Islanding Protection | yes |
| Over Current Protection | yes |
| Reverse DC polarity protection | yes |
| Overload Protection | yes |
| Protection Degree | NEMA-6 / IP-66 / IP-67 |
| ambient temperature | -40°F to +149°F (-40°C to +65°C) |
| operating temperature | -40°F to +185°F (-40°C to +85°C) |
| screen | LED LIGHT |
| Communications | power line |
| Dimension (WHD) | 10.91” * 5.20” * 1.97” |
| weight | 6.4 lbs |
| Environment Category | Indoor and outdoor |
| wet location | Appropriate |
| Pollution Degree | PD 3 |
| Overvoltage category | II(PV), III (AC MAINS) |
| Product Safety Compliance |
UL 1741 IEC/EN 62109-1 |
| Grid Code Compliance* (Refer to the label for the detailed grid code compliance) |
IEEE1547 VDE-AR-N 4105* |
